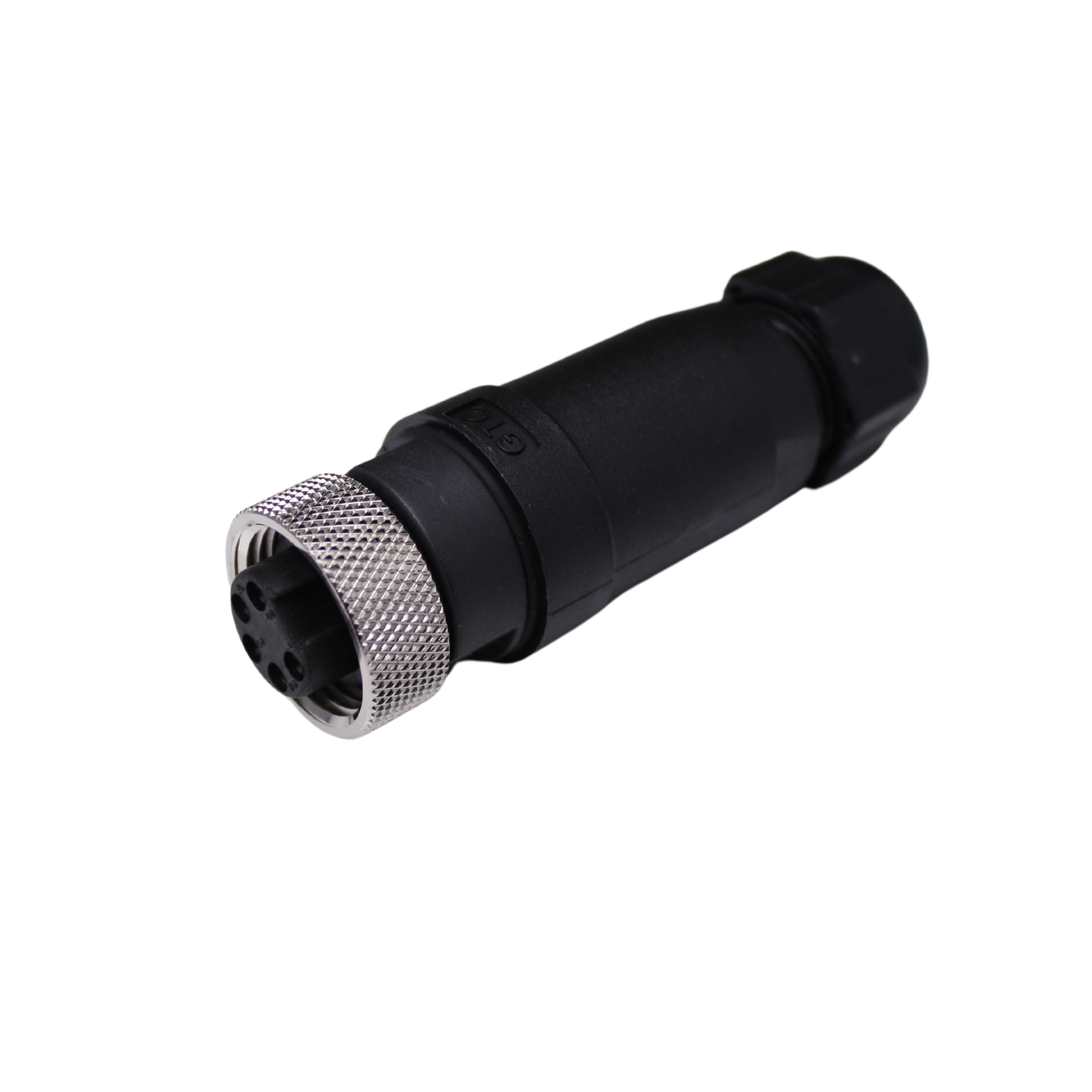

Mini 10A 4P Field Installable Cable End Female Screw-In
代碼 GT272244-33040
Specifications:
Current Rating of the Waterproof Power Connector: 10A
Contact Number:4 PIN
Contact Type: Female
Voltage: 600V AC/DC
AWG Gauge:16 AWG
Temperature Range: -40° / +105°
IP Rating: IP 68
Current Rating of the Waterproof Power Connector: 10A
Contact Number:4 PIN
Contact Type: Female
Voltage: 600V AC/DC
AWG Gauge:16 AWG
Temperature Range: -40° / +105°
IP Rating: IP 68
| Material | |
|---|---|
| Panel Housing | PVC |
| Panel Metal Body | Zinc Alloy With Ni Plated |
| Panel Contacts | Copper Alloy with Au Plating |
| Panel Gasket | Viton |
| Panel Screw Nut | Zinc Alloy With Ni Plated |
| Technical Data | |
| Insulation Resistance | DC1000V±10%‚ test for 1 minute and the insulation resistance should be more than 100MΩ |
| Contact Resistance | 50mΩ Max. |
| Thermal Shock | 5 cycles at -40° / +105°‚after the test‚ the function and appearance can't be impacted. |
| Waterproof Test | Submersion in water 1M for 24 hours. |
