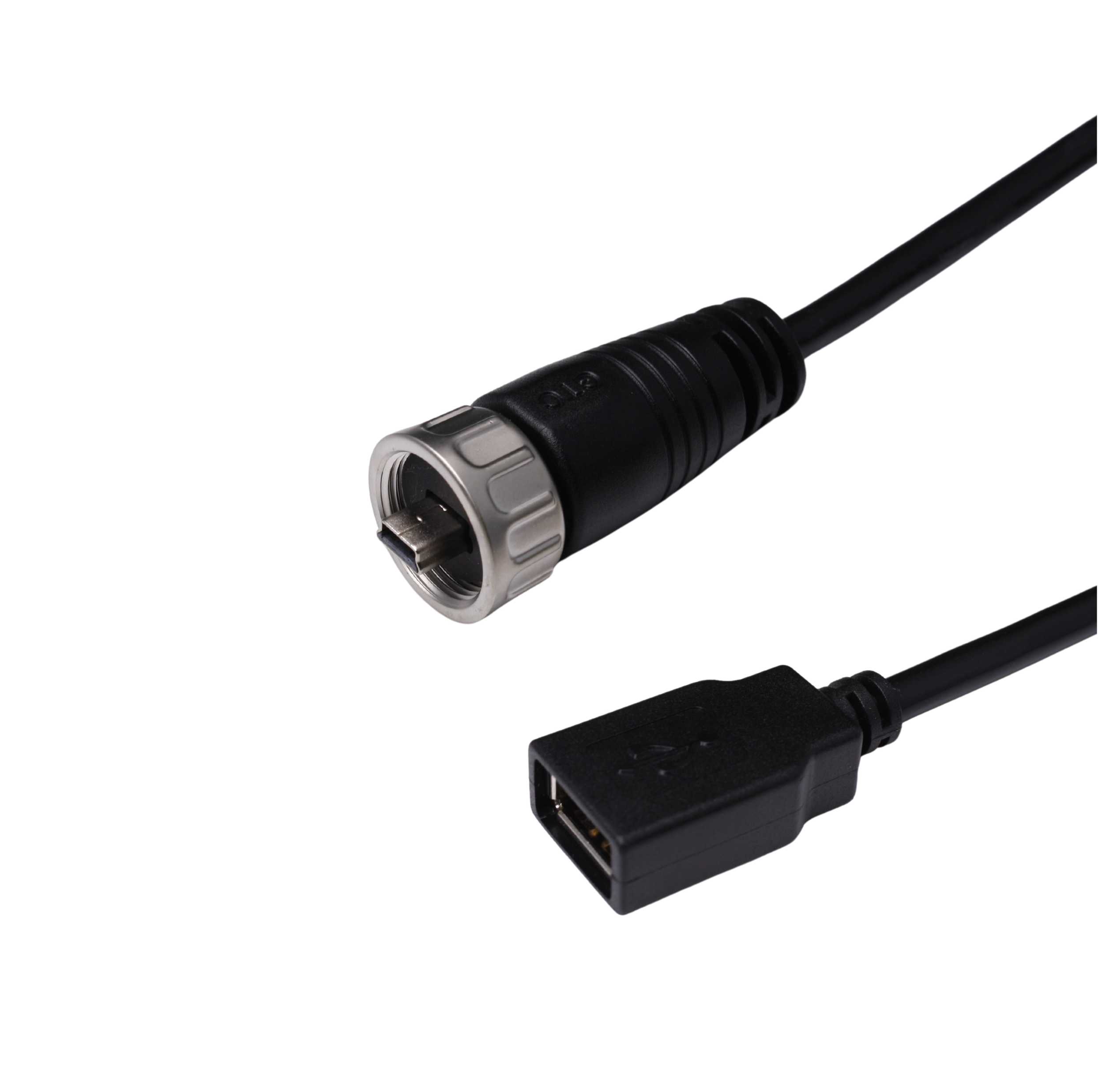

Mini USB-B C2 size Metal Screw Cable End (Over-Molded with Cable)
代碼 GT214320-06-XX
Specifications:
Current Rating: 1.5A
AWG Gauge: 22 AWG ~ 28 AWG
Temperature Range: -40° / +105°
IP Rating: IP 68
Current Rating: 1.5A
AWG Gauge: 22 AWG ~ 28 AWG
Temperature Range: -40° / +105°
IP Rating: IP 68
| Material | |
|---|---|
| Cable End Screw Nut | Zn Alloy‚ Ni Plating |
| Mini USB Plug Housing | PBT |
| Mini USB Plug Contacts | Copper Alloy‚ Au Plating |
| Mini USB Plug Shell | Copper Alloy‚ Ni Plating |
| Cable End Rubber Pad | Silicone |
| Inner Mold/ Over Mold | PVC |
| Technical Data | |
| Insulation Resistance | DC 500V±10%‚test for 1 minute and the insulation resistance should be more than 100MΩ |
| Dielectric Withstanding Voltage | 100 V DC/AC peak‚ contact-to-contact‚ for 1 minute. 150 V DC/AC peak‚ contact-to-test panel or contact-to-shield for 1 minute. |
| Contact Resistance | 50mΩ at 10mA Max. |
| Durability | Cycling Rate: Maximum rate of 200 cycles per hour Mechanism 5000 cycle. |
| Thermal Shock | 5 cycles at -40° / +105°‚after the test‚ the function and appearance can't be impacted. |
| Waterproof Test | Submersion in water 1 meter for 24 hours. |
