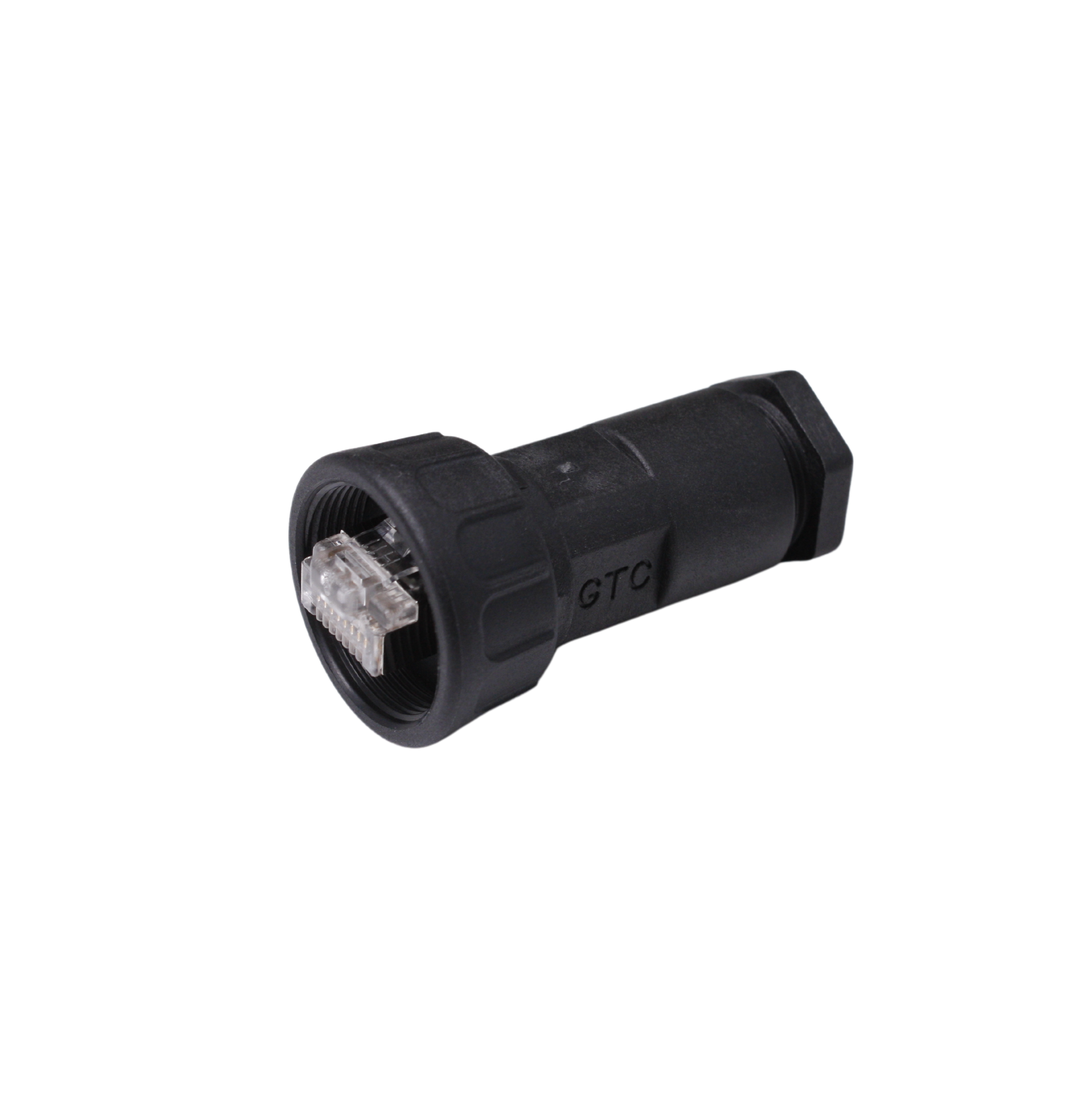

RJ45 Plastic Screw Cable End E1(Field Installable Type)
代碼 GT125360-00
Specifications:
Current Rating: 1.5A
AWG Gauge: 24 AWG ~ 26 AWG
Temperature Range: -40° / +105°
IP Rating: IP 67
Current Rating: 1.5A
AWG Gauge: 24 AWG ~ 26 AWG
Temperature Range: -40° / +105°
IP Rating: IP 67
| Material | |
|---|---|
| Cable End Housing | PPS |
| Cable End Screw Nut/Cover/Gland Nut/Cage | PA66 |
| RJ45 Plug Housing | PC |
| RJ45 Plug contacts | Copper Alloy‚ Au Plating |
| RJ45 Plug Shell | Copper Alloy or Cold Roller Steel‚ Ni Plating |
| Cable End Rubber Pad/O-Ring/Gland/Gasket | Silicone |
| Technical Data | |
| Characteristics | Description |
| Insulation Resistance | DC500V±10%‚ test for 1 minute and the insulation resistance should be more than 100MΩ |
| Dielectric Withstanding Voltage | 1000 V DC/AC peak‚ contact-to-contact‚ for 1 minute. 1500 V DC/AC peak‚ contact-to-test panel or contact-to-shield for 1 minute. |
| Contact Resistance | 20mΩ at 10mA Max. |
| Durability | Speed: 10 mm/s maximum. Rest: 1 s minimum (mated and unmated). Artificially 750 cycle ‚The transfer rate meet Cat 5e Mechanism 750 cycle ‚ The transfer rate meet Cat 5e |
| Thermal Shock | 5 cycles at -40° / +105°‚after the test‚ the function and appearance can't be impacted. |
| Waterproof Test | Submersion in water 1 meter for 30 minutes. |
